PTFE/PI NEEDLEFETL 630 g/m2 (18.5 oz/yd2)
Description
Blended For Versatility in Aggressive Environments
High Durability Filter Bags blend chemically inert expanded polytetrafluoroethylene
(ePTFE) with rugged polyimide fibers.
This hybrid offers significant performance increases over aramid felts both in mechanical endurance and chemical resistance. It provides product recovery and emissions control unequalled by nonmembrane filters.
The polyimide/ePTFE blend provides better humidity and chemical protection
compared to aramid and polyphenylensulfide (PPS) felts. Additionally, its
temperature range goes all the way to 260 °C
(500 °F). This capability means much better protection against process upsets due to temperature fluctuations. An additional benefit of the blend is its higher resistance to acids compared to aramid fibers. The enhanced performance of the polyimide/PTFEbacker is very effective for applications requiring more chemical and thermal endurance than traditional felts made with aramid or PPS fibers.
Features & Benefits
? Optimized
Performance
? Reduced
Support Cost
? High
Operating Temperature
? Higher Acid
Resistance
? Reduced Risks of Downtime
Applications
Working with High-corrosive & temperature gas,
Chemical,
Waster incineration,
Coal-fired boiler,
Non-ferrous metal
PRODUCT
DATA SHEET STYLE PTFE/PI 630 PTFE/PI
NEEDLEFETL AREA
WEIGHT EN12127 630 ±25g/m2 18.5±0.75oz/yd2 DENSITY 0.32 g/cm3 THICKNESS EN ISO
9073/2 2.5 ±0.5mm 0.098±0.019in COMPOSITION FIBER PTFE +

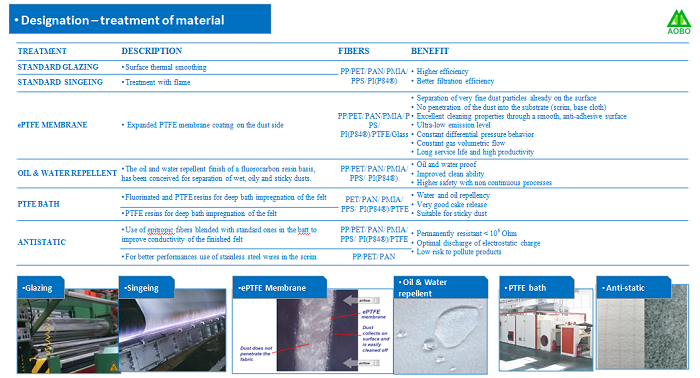

POLYAMIDE (PI) SCRIM PTFE FINISH HEAT-SET,
HYDRO-OIL REPELLENT, SURFACE TREATMENT WITH PTFE BATH LONGITUDINAL CROSS TENSILE
STRENGTH (5×20cm) GB/T
3923.1-2013 ≥ 900N ≥ 1200 N ELONGATION GB/T
3923.1-2013 ≤ 35 % ≤50 % THERMAL
STABILITY (SHRINKAGE) at 260℃ 24h GB/T
6719-2009 ≤1.5% ≤ 1 % AIR
PERMEABILITY at
200Pa GB/T
5453 120-180 l/dm2 min FIBER
PROPERTIES OPERATING
TEMPERATURE (Dry) CONTINUOUS
250℃Max 482℉ Max PEAKS 260℃Max 500℉ Max CHEMICAL
RESISTANCE STRONG
ACIDS *** STRONG
ALKALIS *** SOLVENTS *** WEAK
ACIDS ***** WEAK
ALKALIS **** OXIDIZING *** HYDROLYSIS
*** LENGEND: **** EXCELLENT *** GOOD ** FAIR * POOR * All data expressed as typical values. This technical data is subject to
change.

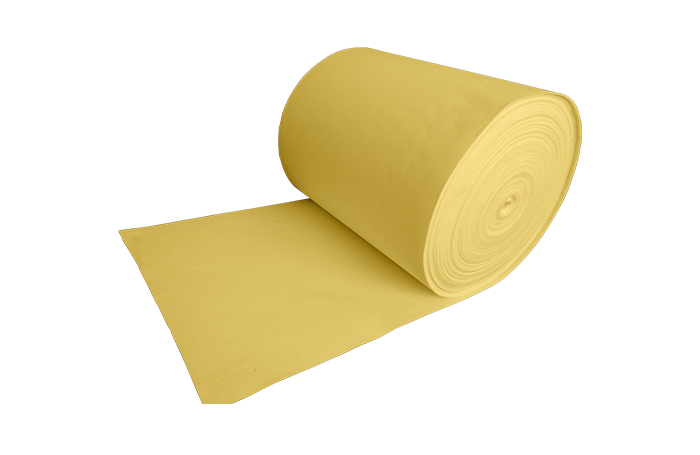

Filter media as roll goods
made of needle felt and glass fibre fabric

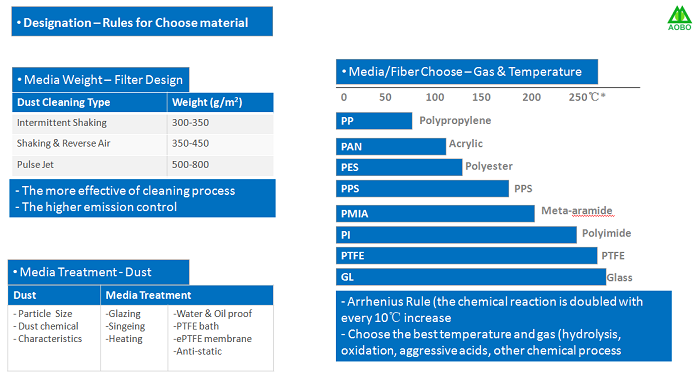

Filter media - provide the individual & tailored solution
? Varieties Material Choose
? Multi-layer Fiber Construction & Support Scrim
? Excellent Durability and Longer Life
? Mechanically High-strength
? Finished Treatment Performance
? Higher Efficiency
? Easy Cleaning
? Less Dust Emission
? Better Pressure Performance
? Resistance to Corrosive Flue Gas & Dust
? Glass fibre fabric with ePTFE membrane
? Working width up to 2.60 m
? Basis weight from 250 to 950 g/m2
? Innovative performance material can be used in numerous areas and fulfill various requirements
? Reliable and durable materiel from roll
